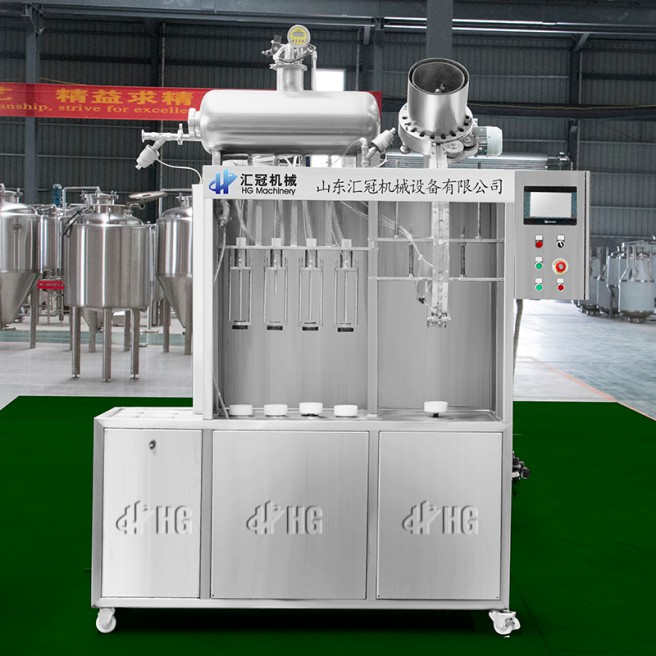

Detail of 360BPM(6BPM) Semi-Automatic Beer Bottling Machine
FEATURES
- Small footprint: 1700*1100*2200mm
- The filling process includes purge, CO2 pressure, filling and exhaust
- High quality sealing part

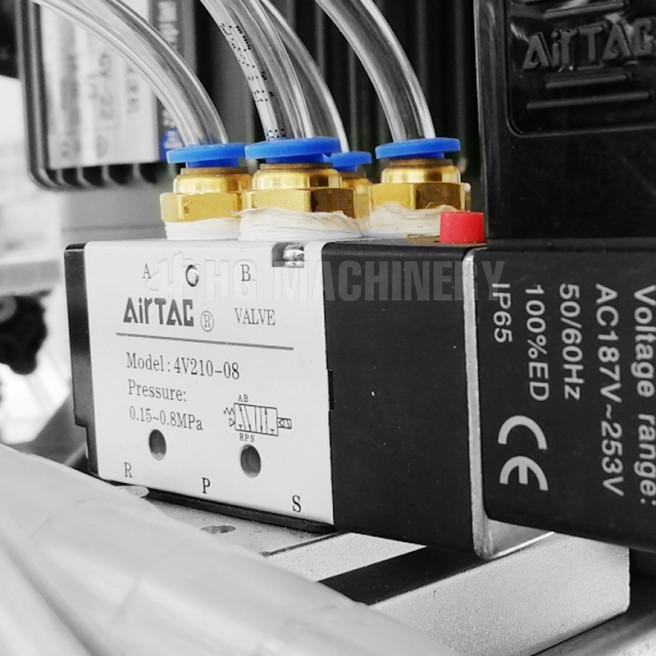

- Touching screen, PLC controling system
- With beer tank, Make the quality of beer more stable
- Adopts high precision mechanical valve, fast filling speed, high precision in liquid level.

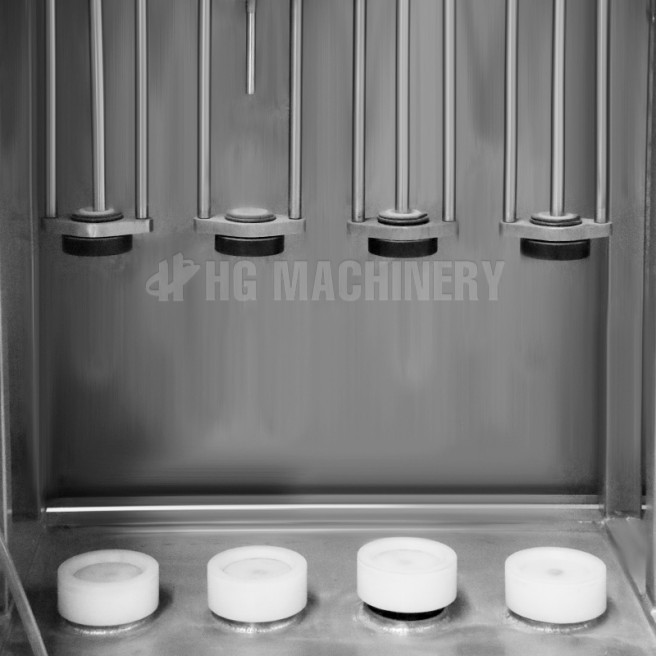

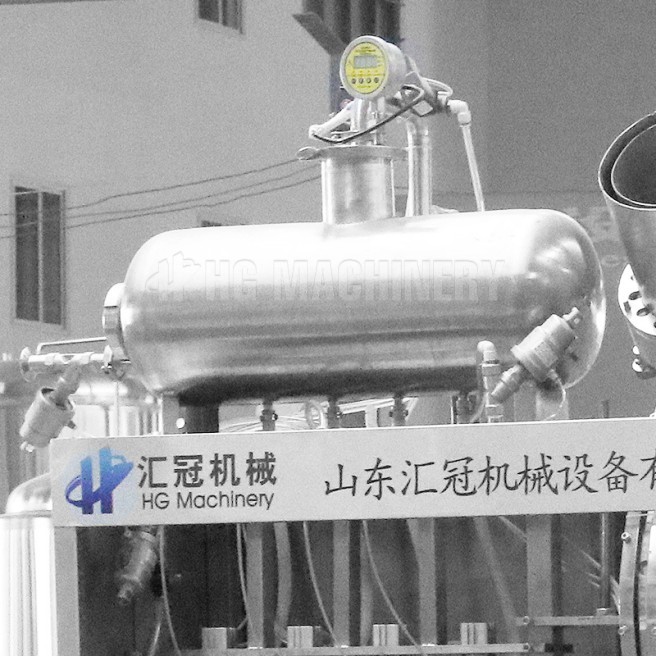

- Sealed filling cylinder made of 304 stainless steel and automatic adjustment of the liquid level to realize isobaric filling.
- CIP cleaning function
- The whole machine is protected by stainless door.
- Adopt vacuum and CO2 preparing pressure principal, and then prepare pressure for a second time to make sure the filling quality.

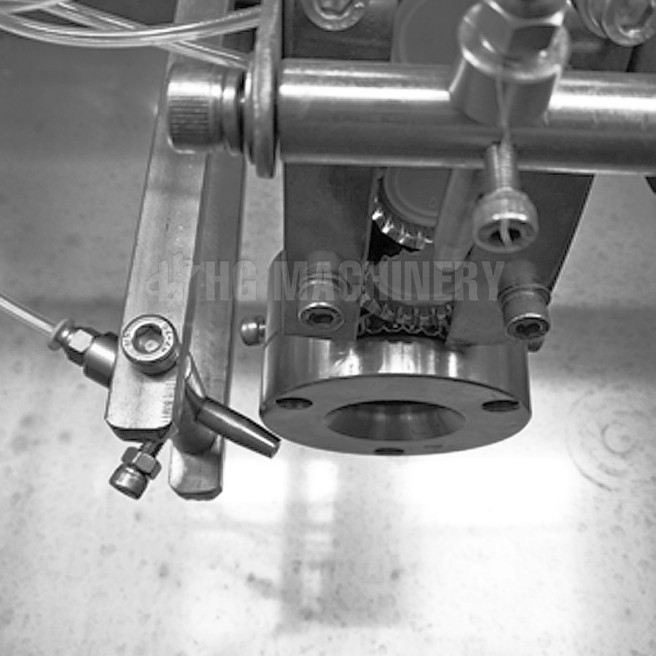

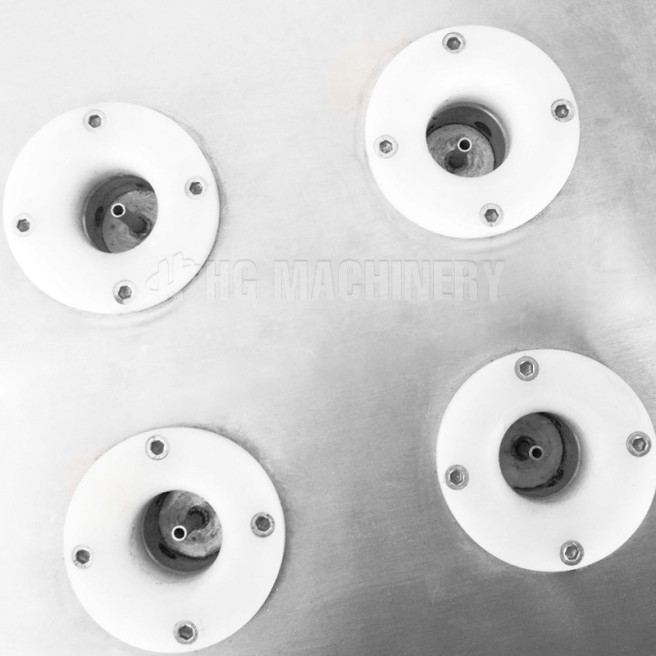

- The height of the washing, filling, capping machine is adjustable to fill different kinds of bottles within the design scope.

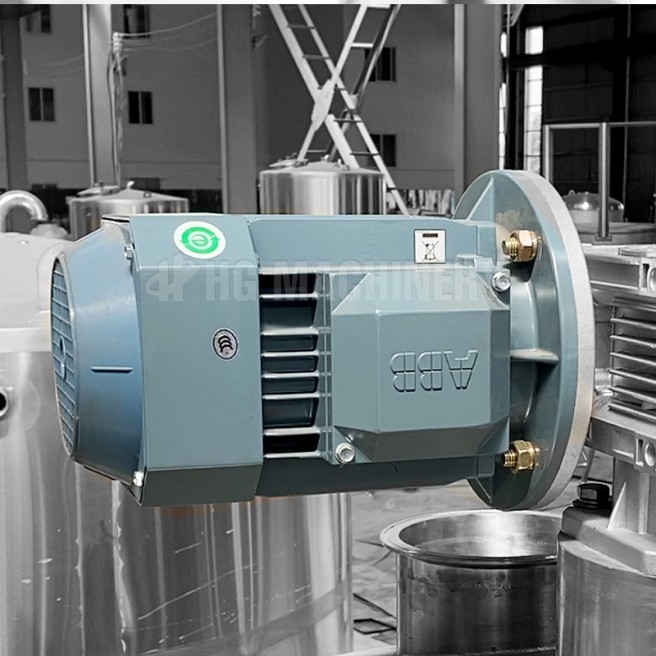

- Main transmission adopts a transmission combination of cog-type belt and gear box type, high efficiency and low noise.
PARAMETERS
| Item | Parameters |
| Washing heads | 4 |
| Filling heads | 4 |
| Capping heads | 1 |
| Rated capacity(500ml one bottle) | 300-500BPH |
| Suitable bottle type | Bottle height: 150~300mm Bottle diameter: Φ50~Φ85mm |
| Sterile air consumption | 0.2 m3/min(0.4~0.6Mpa) |
| CO2 consumption | 260g/100L |
| Vacuum pump | 0.2 m3/h |
| Control voltage DC | 24V |
| Water | 0.5-1T |
| Power | 1KW Hopper motor: 0 .18KW Vacuum pump motor: 0.37 KW (the user prepares) Rinsing pump motor: 0.37KW (the user prepares) |
| Weight | 250KG |
| Dimensions | 1550×550×2220 (length×wide×high) |
MODELS & SPECS
| Item | Production capacity | Filling method | Material | Dimensions |
| HG-4-4-1 | 240-360BPH | Isobaric filling | SUS304 | 1550*550*1750mm |
| HG-6-6-1 | 500-800BPH | Isobaric filling | SUS304 | 1520*1125*2350mm |
| HG-8-8-3 | 800-1000BPH | Isobaric filling | SUS304 | 1850*1600*2500mm |
| HG-16-16-6 | 2000BPH | Isobaric filling | SUS304 | 2300*1900*2500mm |
| HG-40-40-10 | 8000-10000BPH | Isobaric filling | SUS304 | 4200*3000*2700mm |
